合金磁粉芯

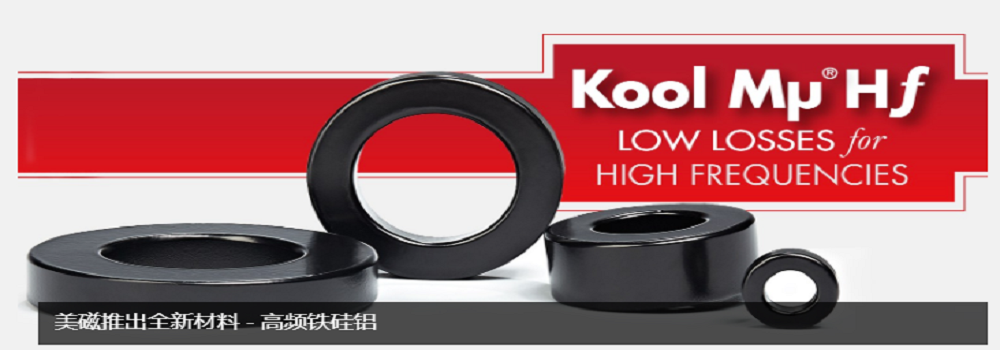

美磁产品包括，铁硅铝磁粉芯(Kool Mu®，Sendust)，钼坡莫MPP(铁镍钼磁粉芯)，高磁通High Flux(铁镍磁粉芯) ，铁硅合金XFlux®，Kool Mu MAX, 75 系列，锰锌铁氧体，以及绕带磁芯等。

环形磁芯规格及尺寸

Core Data	AL nH/T2 (nominal)							Le Path Length mm	Ae Cross Section mm2	Ve Volume mm3	OD max mm	ID min mm	HT max mm
Core Data	14µ	26µ	40µ	60µ	75µ	90µ	125µ	Le Path Length mm	Ae Cross Section mm2	Ve Volume mm3	OD max mm	ID min mm	HT max mm
140				13	16	19	26	8.06	1.30	10.5	4.20	1.27	2.16
150				17	21	25	35	9.42	2.11	19.9	4.58	1.72	3.18
180				20	25	30	42	10.6	2.85	30.3	5.29	1.85	3.18
020				24	30	36	50	13.6	4.7	64	6.99	2.28	3.43
240				26	32	39	54	13.6	4.76	64.9	7.24	2.15	3.18
270				50	62	74	103	13.6	9.2	125	7.24	2.15	5.42
410						50	70	16.5	7.25	120	7.5	3.45	5.72
030				25	31	37	52	17.9	5.99	107	8.51	3.45	3.81
280				25	32	38	53	21.8	7.52	164	10.3	4.26	3.81
290				32		48	66	21.8	9.45	206	10.3	4.26	4.60
040				32	40	48	66	23	9.57	220	10.8	4.57	4.60
130				26	32	38	53	26.9	9.06	244	11.9	5.84	4.60
050		12		27	34	40	56	31.2	10.9	340	13.5	6.98	5.52
120				35	43	52	72	41.2	19.2	791	17.3	9.52	7.12
380				43	53	64	89	41.4	23.2	960	18.1	9.01	7.12
206			21	32	41	49	68	50.9	22.1	1,120	21.1	12	7.12
310		19	29	43	54	65	90	56.7	31.7	1,800	23.7	13.3	8.3
350		22	34	51	62	76	105	58.8	38.8	2,280	24.4	13.7	9.66
930		32	50	75	94	113	157	63.5	65.4	4,150	27.69	14.1	12
548		28	41	61	76	91	127	81.4	65.6	5,340	33.7	19.5	11.4
585		16	25	38	47	57	79	89.5	46.6	4,150	35.18	22.5	9.78
324		24	37	56	70	84	117	89.8	67.8	6,090	36.71	21.5	11.4
254	19	35	54	81	101	121	168	98.4	107	10,600	40.77	23.3	15.4
454		47	72	108	135	161	224	102	147.5	15,100	43.83	23.4	17.26
089	20	37	57	86	107	128	178	116	134	15,600	47.63	27.88	16.2
438	32	59	90	135	169	202	281	107	199	21,300	47.63	23.3	19
725		76	117	175	219	269	366	114	262	29,700	51.31	23.9	21.6
715	17	32	49	73	91	109	152	127	125	15,900	51.69	30.93	14.4
109	18	33	50	75	94	112	156	143	144	20,700	58.0	34.7	14.9
195	32	60	92	138	172	207	287	125	229	28,600	58.0	25.6	16.2
620	44	82	126	189	237	284	394	144	360	51,800	62.9	31.7	25.9
070	35	65	100	143	187	225	312	158	314	49,700	69.4	34.7	21.4
778	47	88	135	205			425	177.2	492	81,500	78.9	38.3	26.8
740	48	88	136	204	255	306	425	184	497	91,400	75.0	44.4	35.9
866	16	30	45	68			142	196	176	34,500	78.9	48.2	13.9
906	20	37	57	85			177	196	221	43,400	78.9	48.2	17.1
102	26	48	74	111			232	243	358	86,900	103.0	55.75	17.9
337	37	68	105	158				324	678	220,000	134.0	77.19	26.8
165		78						412	987	407,000	166.5	101.0	33.15

E 形磁芯规格及尺寸

Core Data	A_L nH/T² (nominal)				L_e Path Length mm	A_e Cross Section mm²	V_e Volume mm³	Length max mm	Leg Length min mm	Height max mm
Core Data	26µ	40µ	60µ	90µ	L_e Path Length mm	A_e Cross Section mm²	V_e Volume mm³	Length max mm	Leg Length min mm	Height max mm
1808	26	35	48	69	40.1	22.8	914	19.6	7.9	4.93
2510	39	52	70	100	48.5	38.5	1,867	25.8	9.4	6.45
3007	33	46	71	92	65.6	60.1	3,943	30.6	14.8	7.21
3515	56	75	102	146	69.4	84	5,830	35.1	14.0	9.53
4017	56	76	105	151	98.4	128	12,595	43.5	20.8	11.0
4020	80	108	150	217	98.4	183	18,007	43.5	20.8	15.7
4022	104	140	194	281	98.4	237	23,321	43.5	20.8	20.3
4317	88	119	163	234	77.5	152	11,800	41.5	16.2	12.7
5528	116	157	219	322	123	350	43,100	55.7	27.2	21.0
5530	138	187	261	338	123	417	51,400	55.7	27.2	25.0
6527	162	230	300		147	540	79,400	66.4	32.1	27.4
7228	130	173	235		137	368	50,400	73.5	27.4	19.4
8020	103	145	190		185	389	72,000	81.2	37.5	20.2
8024			370		131.4	600	78,840	81.2	23.4	30.1
8044	91				208	389	80,900	81.2	44.0	20.2
114LE	235		445		215	1220	262,000	115.1	45.8	35.3
130LE	254				219	1080	237,000	134.1	32.2	55.1
160LE	180				273	778	212,000	162.5	37.5	40.9

U 形磁芯规格及尺寸

Core Data	AL nH/T2 (nominal)				Le Path Length mm	Ae Cross Section mm2	Ve Volume mm3	Length max mm	Leg Length min mm	Height max mm
Core Data	26µ	40µ	60µ	90µ	Le Path Length mm	Ae Cross Section mm2	Ve Volume mm3	Length max mm	Leg Length min mm	Height max mm
3112		92	111	179	65.6	101	6,620	31.8	10.9	12.5
4110			78		85.2	80	6,816	41.2	10.7	9.9
4111		72	95	138	85.2	101	8,605	41.2	10.9	12.5
4119		110	151	218	85.2	160	13,632	41.2	10.9	19.5
5527	67				168	172	28,896	55.5	27.1	16.7
5529	85				168	244	40,992	55.5	27.1	23.6
6527	89		165		219	270	59,130	66.6	32.2	27.4
6533	82				199	250	49,750	66.6	32.2	20.4
7236	87				219	290	63,510	73.3	34.9	21.3
8020	64				273	195	53,235	81	37.5	20.2
8038	97		179		237	354	83,898	81	37.5	23.4

条块磁芯规格及尺寸

Core Data	AL nH/T² (nominal)				Ve Volume mm³	Length mm	Width mm	Height mm
Core Data	26µ	40µ	60µ	90µ	Ve Volume mm³	Length mm	Width mm	Height mm
4741	PDF		PDF		53,600	47.5	41.0	27.5
5030	PDF	PDF	PDF		23,000	50.5	30.3	15.0
5528	PDF	PDF	PDF		31,200	54.9	27.6	20.6
6030	PDF			PDF	27,000	60.0	30.0	15.0
7020	PDF	PDF	PDF		28,600	70.5	20.3	20
7030	PDF				42,800	70.5	30.3	20.0
8030	PDF	PDF	PDF		48,800	80.5	30.3	20.00
9541	PDF	PDF	PDF		107,200	95.0	41.0	27.5

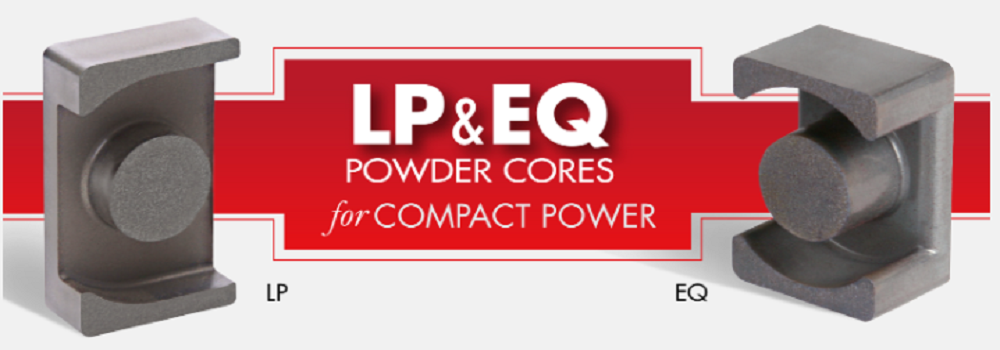

EQ 磁芯规格及尺寸

Core Data	A_L nH/T² (nominal)			L_e Path Length mm	A_eCross Section mm²	Length mm	Height mm	Width mm
Core Data	26µ	40µ	60µ	L_e Path Length mm	A_eCross Section mm²	Length mm	Height mm	Width mm
EQ26 L070	93	142	213	42.3	119.8	26.5	7.0	19.0
EQ26 L088	79	122	183	49.5	119.8	26.5	8.8	19.0
EQ26 L101	72	110	165	54.7	119.8	26.5	10.1	19.0
EQ26 L124	61	94	141	63.9	119.8	26.5	12.4	19.0
EQ32 L101	84	129	194	59.5	152.3	32.0	10.1	22.0
EQ32 L152	62	96	144	79.9	152.3	32.0	15.2	22.0
EQ36 L174	62	96	144	94.7	180.8	36.0	17.4	26.0
EQ41 L199	57	87	131	115.2	199.7	41.5	19.9	28.0
EQ50 L250	77	118	178	133.4	314.1	50.0	25.0	32.0
EQ50 L200		139

LP 磁芯规格及尺寸

Core Data	A_L nH/T² (nominal)	L_e Path Length mm	A_e Cross Section mm²	Length mm	Height mm	Width mm
Core Data	60µ	L_e Path Length mm	A_e Cross Section mm²	Length mm	Height mm	Width mm
LP23 L087	103	49.1	67.0	23.4	8.7	14.0
LP25 L099	130	55.7	96.0	25.0	9.9	18.0
LP42 L123	204	76.1	206.0	42.0	12.3	25.0
LP42 L158	172	90.1	206.0	42.0	15.8	25.0
